Horizon HX150 4G cellular router

Horizon HX150 4G cellular router

small but mighty

Rugged and durable professional 4G LTE dual SIM cellular router with advanced WiFi, Ethernet and business grade networking. Quick to deploy, easy to manage and flexible for applications across demanding market sectors.

Designed for indoor use
Designed for outdoor use
Only
£ 220.00 GBP
Contact to order
Horizon HX150 4G cellular router
Technology / Bands
  • FDD LTE B1 (2100) / B3 (1800) / B7 (2600) / B8 (900) / B20 (800) / B28A (700)
  • TDD LTE B38 (2600) / B40 (2300) / B41 (2500)
  • UMTS B1 (2100) / B8 (900)
  • GSM B3 (1800) / B8 (900)

Chipset

  • CPU: Atheros Wasp, MIPS 74Kc, 550 MHz
  • RAM: 128 MB, DDR2
  • FLASH memory: 16 MB SPI Flash
WiFi
  • IEEE 802.11b/g/n, Access Point (AP), Station (STA)
  • Up to 100 simultaneous connections
Max speed
  • 4G (LTE) – Cat 4 up to 150 Mbps
  • 3G – Up to 42 Mbps
  • 2G – Up to 236.8 kbps.
SIM card

2 SIM cards

auto-switch cases:

  • weak signal
  • data limit
  • SMS limit
  • roaming
  • no network
  • network denied
  • data connection fail
  • SIM idle protection
celledge hex
Horizon HX150 4G cellular router

built to perform

HX150 is a professional industrial 4G/LTE WiFi router for IoT applications. This rugged mobile device delivers high performance cellular communication in harsh environments and a wide operating temperature range. It is also compatible with RMS – celledge‘s remote management platform that is ready to deliver the true value of M2M and IoT networking applications.

The router is equipped with four Ethernet ports, two external SIM holders, digital input/output and signal strength status LED indicators, while external SMA connectors make it possible to attach desired antennas. HX150 is a professional LTE CAT4 router empowered by celledgeOS - a unified operating system for all celledge routers, created for the most demanding mobile networking applications. Ensure your business continuity with Dual-SIM and 4G failover.

WiFi

WiFi

802.11b/g/n (Up to 100 simultaneous connections)

IP

IP

IP30

Mobile Module

mobile module

Cat 4

Weight

weight

280g

Dimensions

dimensions

50 mm x 110 mm x 100 mm (HxWxD)

SIM Cards

SIM cards

2

what's in the box

  • celledge HORIZON HX150 Cellular Router
  • UK PSU
  • 2 x SMA male cellular antenna
  • 2 x RP-SMA male WiFi antenna
  • Ethernet cable (1.5m)
  • QSG (Quick Start Guide)

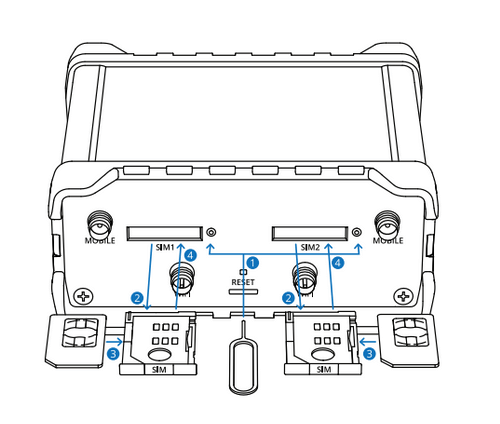

Product Diagram
